led street light fixture OEM ODM service aluminum die cast for lighting
تخصيص
| Product Datasheet | |||||
| رقم الصنف. | EK-BL05(mini) | EK-BL05(SS) | EK-BL05(S) | EK-BL05(M) | EK-BL05(L) |
| Related Power | 60 واط | 100 واط | 150 واط | 200 واط | 240w |
| Product Size mm | 572*230*97mm | 642*250*97mm | 693*250*97mm | 727*290*97mm | 828*290*97mm |
| Installation Height | 6-8 م | 6-80 | 8-10m | 8-12m | 8-12m |
| Input Voltage | 100-305V AC | ||||
| Frequency Rang | 50/60Hz. | ||||
| Power Factor (PF) | ＞95 | ||||
| Type of Light Source | LUMELEDS/ CREE | ||||
| Luminous | 150lm/w | ||||
| Color Temperature | 3000k-6000k | ||||
| Color Rendering Index | CRI＞70 | ||||
| IP/IK | IP65/IK08 | ||||
| بيئة العمل | -20℃～+50℃，10%～90%RH | ||||
| Lifespan L70 at 25℃ | ＞50,000hrs | ||||
| Mounting Type | Side entry or Vertical pole mounted ±15° | ||||
| Dimmable | 1-10V Dimming /Timer Dimming/Dali Dimming | ||||
| Protection Class | Class Ⅰ(Default)/Class Ⅱ | ||||
| Standards | CE, RoHS, ENEC, CB, LM79, LM80, TM-21, IP66, IK08 | ||||
| Available on request | Solar Compatible, NEMA socket (3/5/7pins), ZHAGA socket, short cap, Photocell, Motion sensor, NTC, OLC, DALI Dimming | ||||
| Reasonable tolerance | Watt: ±10%，CCT: ±500K, Lumen efficiency: ±5% | ||||
China Factory Led Street Light Housing Aluminum Pressure Die Casting outdoor light empty casing.

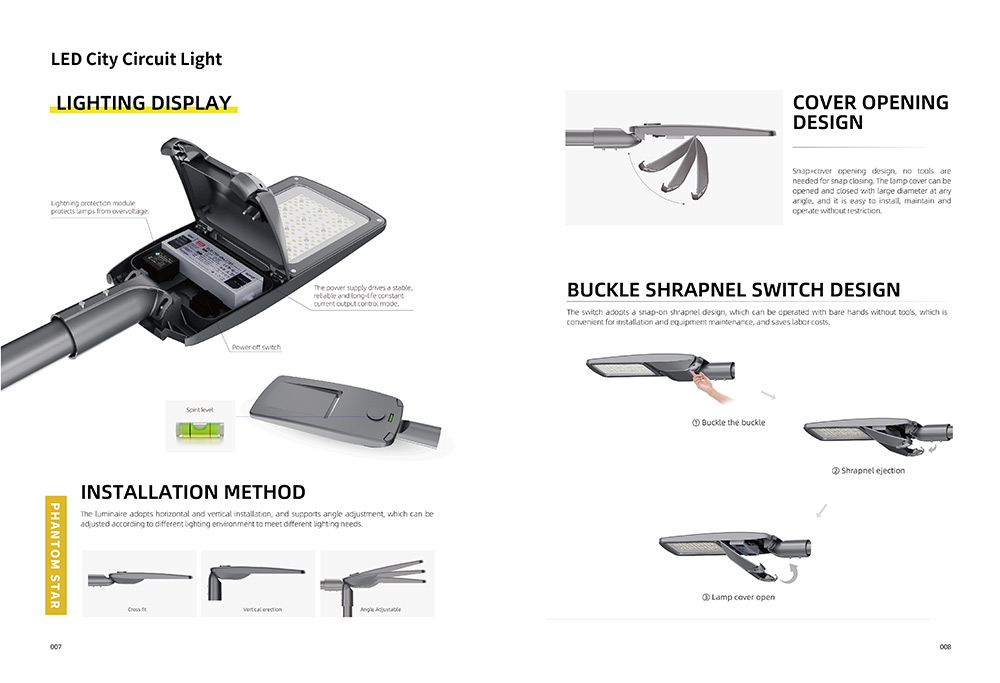

LED City Circuit Light LED Street Light Installation Method
led city road light adopts a snap on shrapnel design which can be operated with bare hands without tools and is convenient for installation and equipment maintenance saves labor costs.

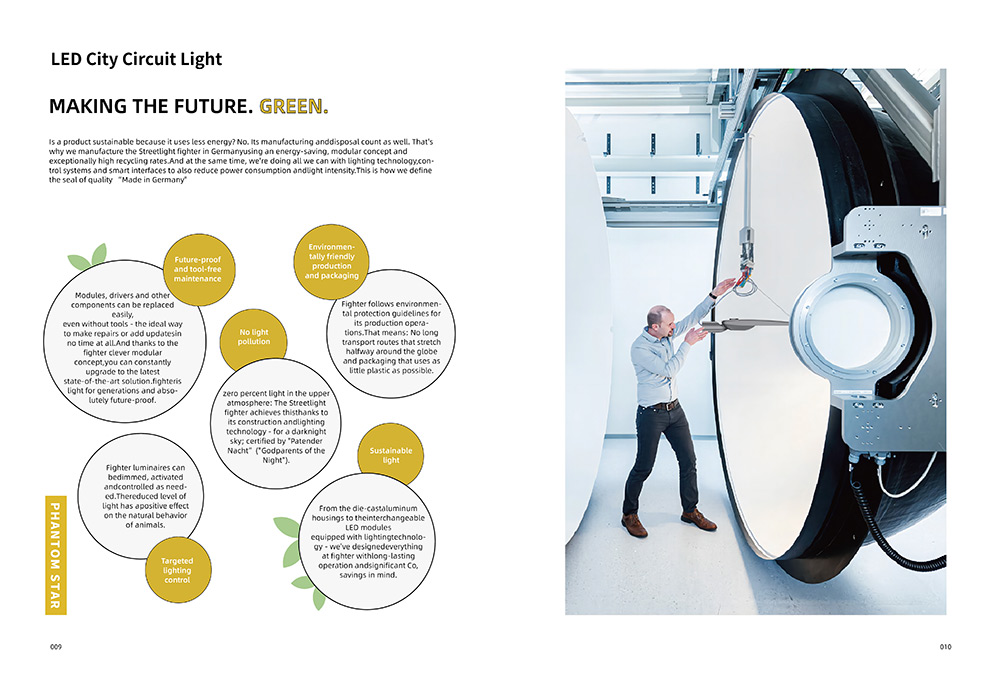

1.Future Proof and tool free maintenance,
2.Environmentally friendly production and packaging
3.No light pollution
4.Sustainable light targeted lighting control

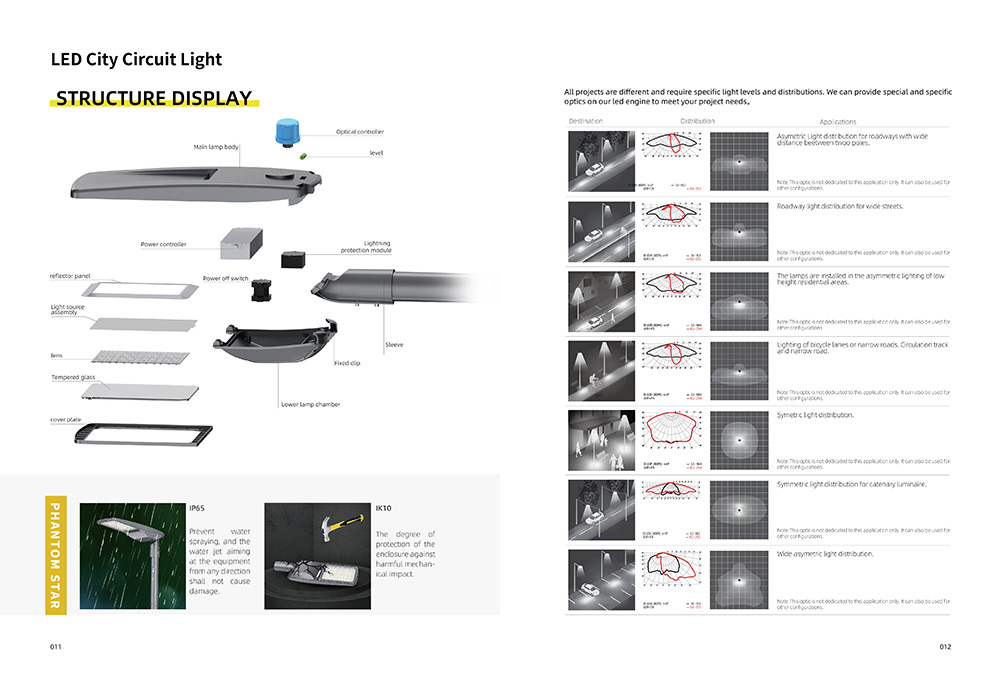

LED Street light Structure Display
Efficient
The Streetlight fighter range of luminaires is based on maximum efficiency-in terms of installation, service life and maintenance. And of course, in operation.
The new generation now functions up to 20 percent more efficiently.
High light output
In the latest generation, Streetlight EK-BL05 design get seven better 28 percent higher luminous flux, less light degradation, greater energy savings-with continued precise,glare-free lighting, The new generation now functions up to 20 percent more efficiently.
آمن
Inconspicuous during the day, reliable and powerful at night: Streetlight features light distributions precisely matching their applications, from residential neighborhoods to freeways-a complete solution, and always conforming to standards.
Smart
Pioneering control concept also for the subsequent integration of tell management systems due to optional Smart interface compliant to Zhaga standard.

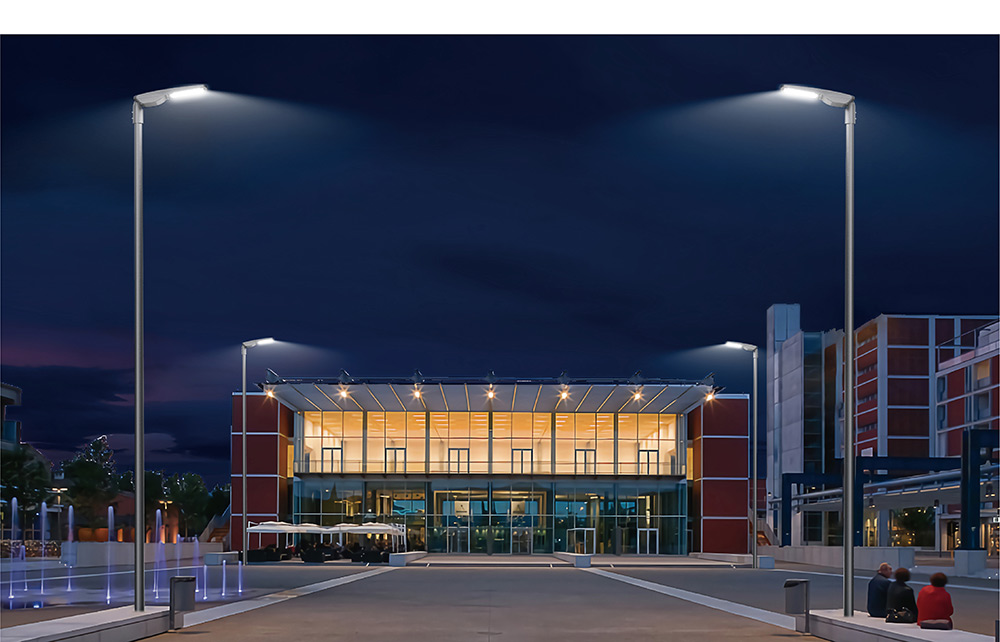

LED Street Light Application
Our Factory Show
