Perfect Combination of Practical Technology Optical LED street Light

Model Number : EK-LDC16
اسم المنتج: ضوء الشارع LED
يوصي بالواتس: 50 واط 100 واط 150 واط 200 واط
Waterproof Index : IP66
مؤشر مقاومة الزلازل: IK08 IK09
Working Temperature(℃): -20-50
Surface Color : RAL9007 (available on request)
Contain Accessories : Complete finished street lights

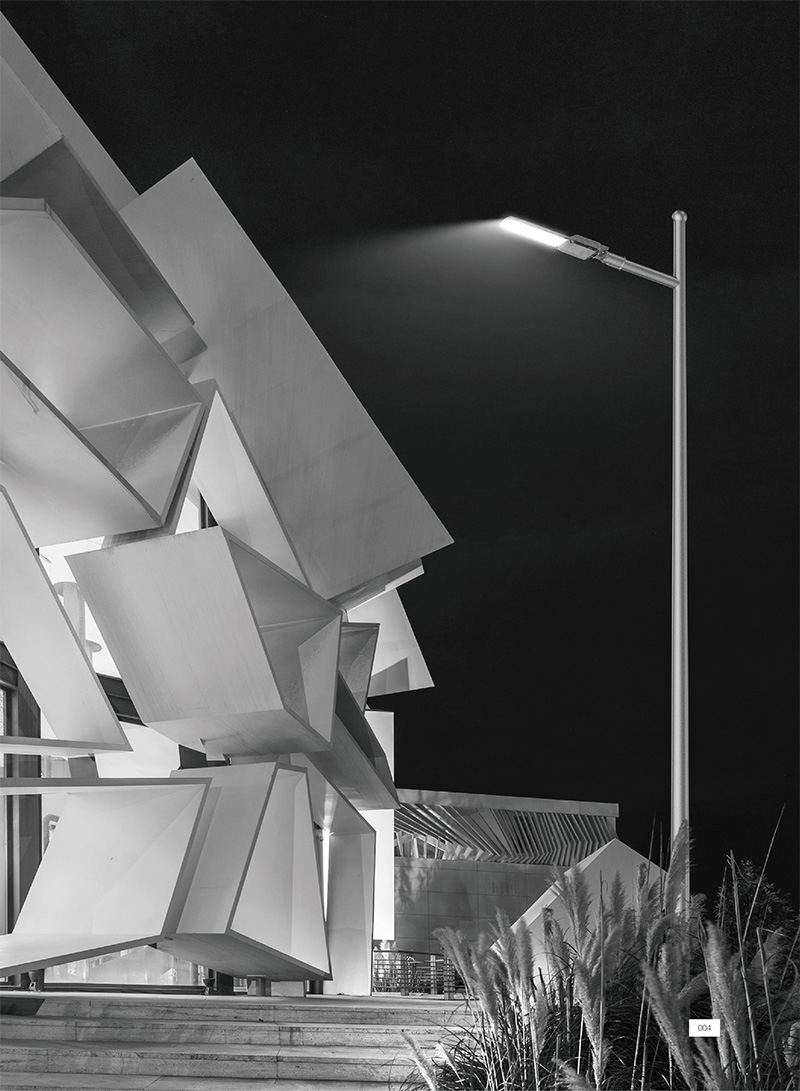

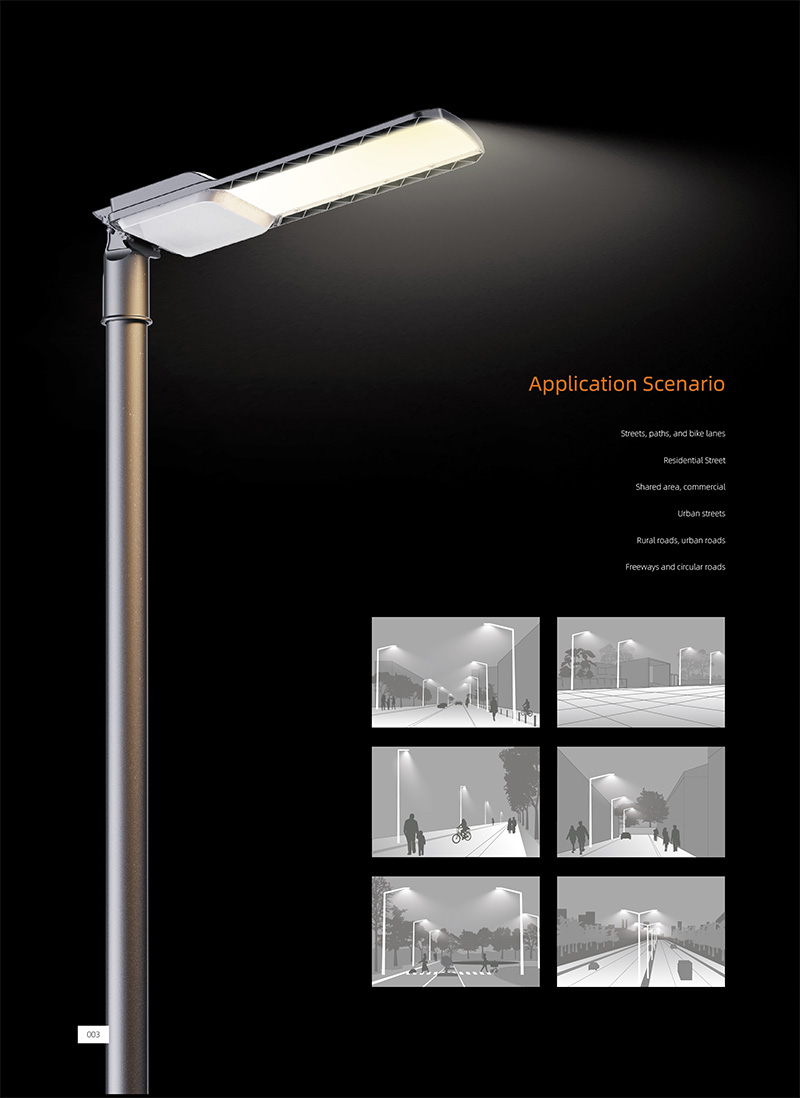

Application Scenario

  • Streets,Paths and bike lanes
  • Residential Street
  • Shared area, commercial
  • Urban streets
  • Rural roads,urban roads
  • Freeways and cicular raods

Technical Norm

General highlights

  1. Used for any outdoor lighting places such as roads, squares
  2. Working temperature: -30 。 C/+50 。 c

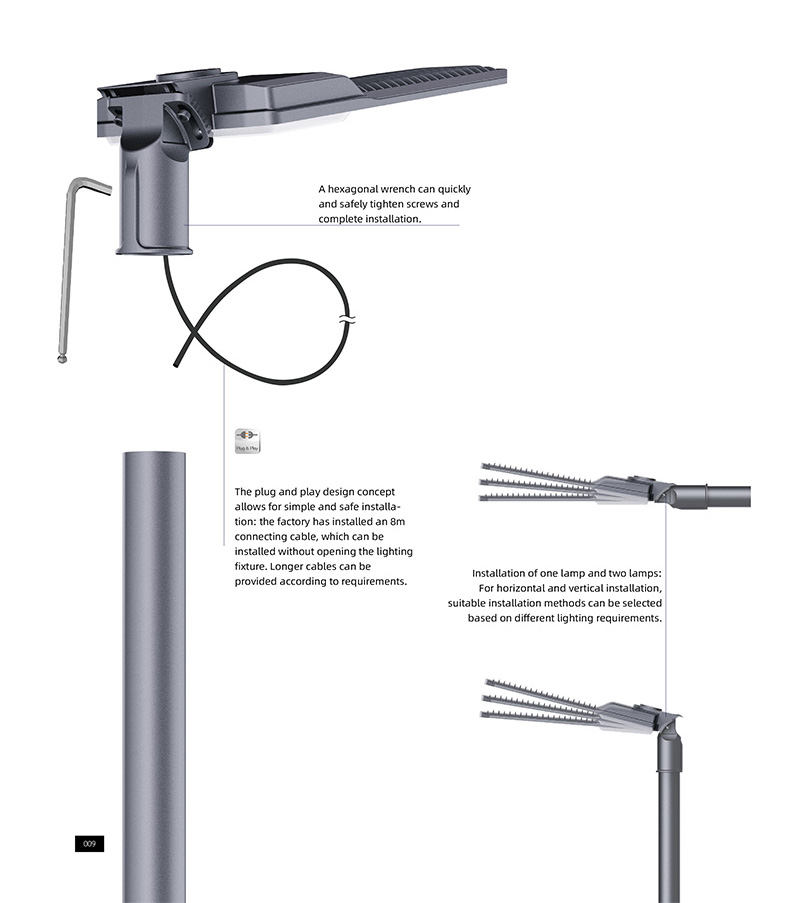

  3. Adopting buckle design for easy installation and maintenanceLumen
  4. Using high-quality chips
  5. Less light decay, long-lasting and durable
  6. Lamp poles with different calibers
  7. Excellent heat dissipation



Optical properties

  1. Different lens arrangements in different areas and installation
  2. Uniform light distribution
  3. Modular design of light source for easy replacement
  4. output(absolute metering): 100o0lm-400oolm
  5. Color temperature: 2200K-6500K
  6. Color rendering index:>70



Shell and Finis

  1. Corrosion resistant die cast aluminum casing Cancer-A Cancer-B
  2. Electrostatic powder coating
  3. Protection level: IP66
  4. Impact protection: IK09

Technical Parameter

Technical  Parameter
ModelEK-LDC16-50WEK-LDC16-100WEK-LDC16-150WEK-LDC16-200W
قوة50 واط100W150W200W
Input VoltageAC100-277V
Frequency Range50Hz/60Hz
Power Factor＞0.95
Whole Lighting Effect180lm/w
LED Lifespan50000 هـ
Rendering IndexCRI70
Color Temperature2200K-6500K
IPIP66
IKIK09
Operation Temperatureminus 30+50℃
Storage Temperatureminus 20+60℃  10%-90%RH
مادة العدسةPC LENS
Installation Height6-8mm6-8mm8-10mm10-12mm

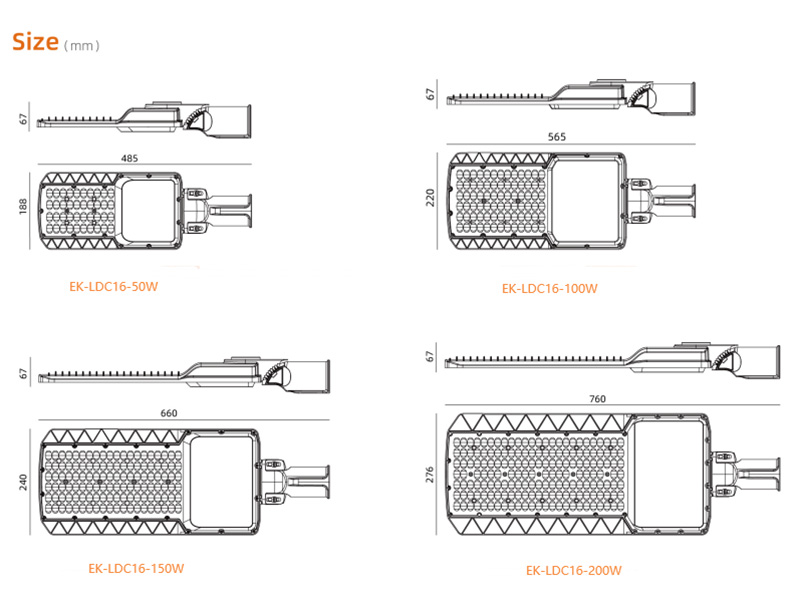

Size

Street Lamp Series

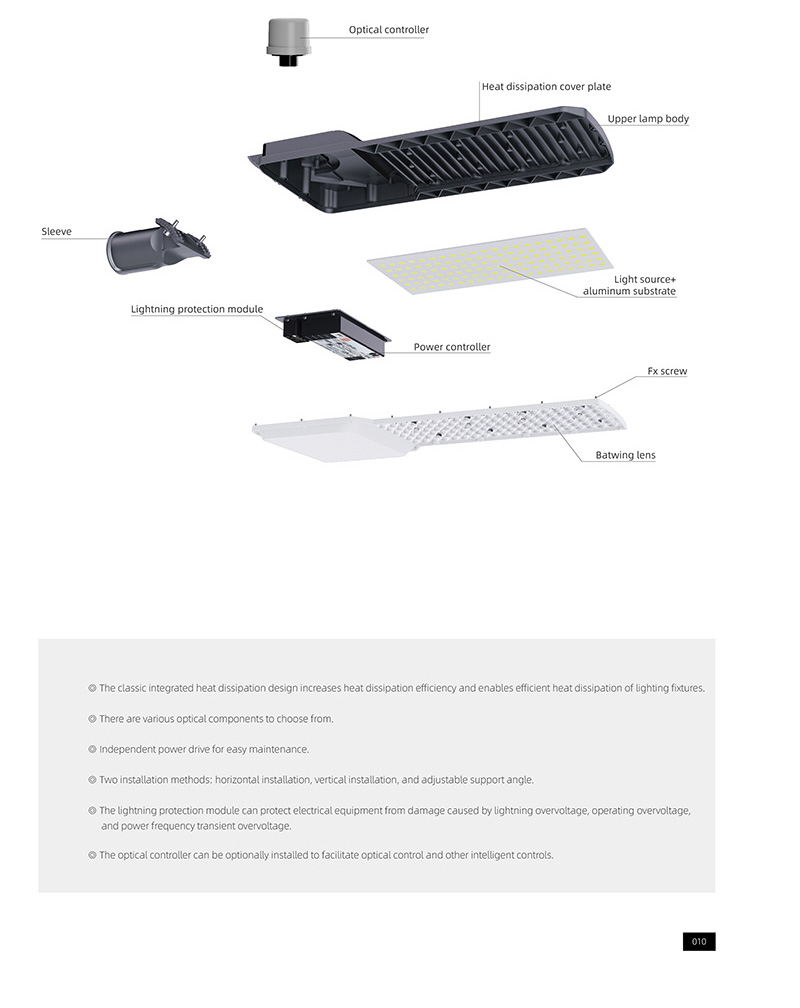

Strcture Display

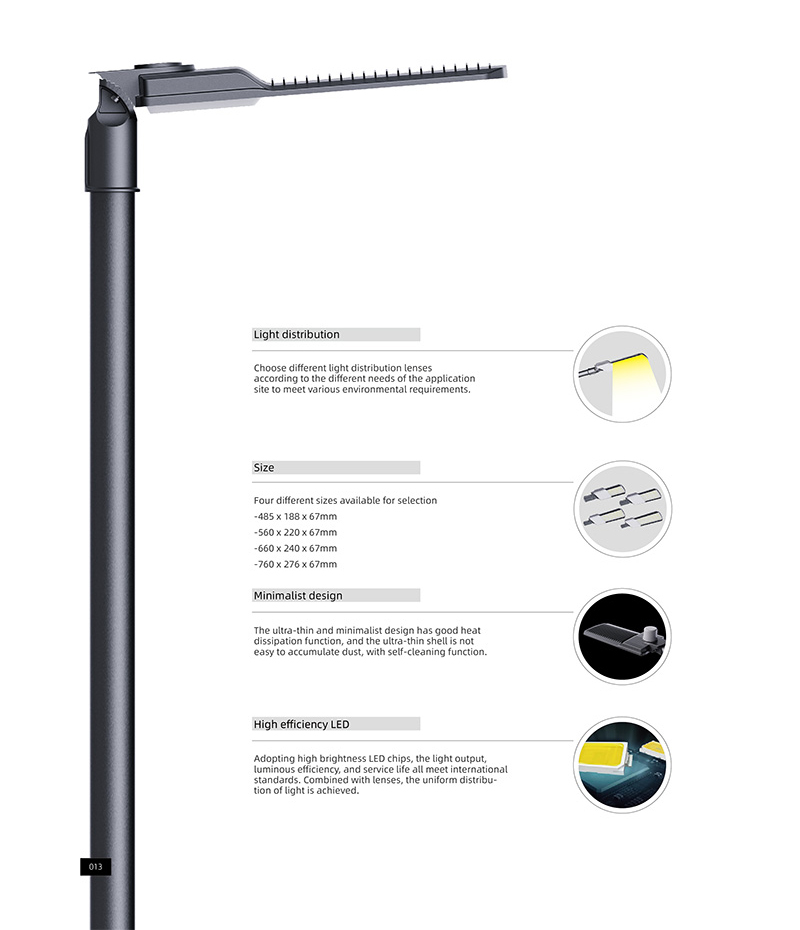

Detail Highlights

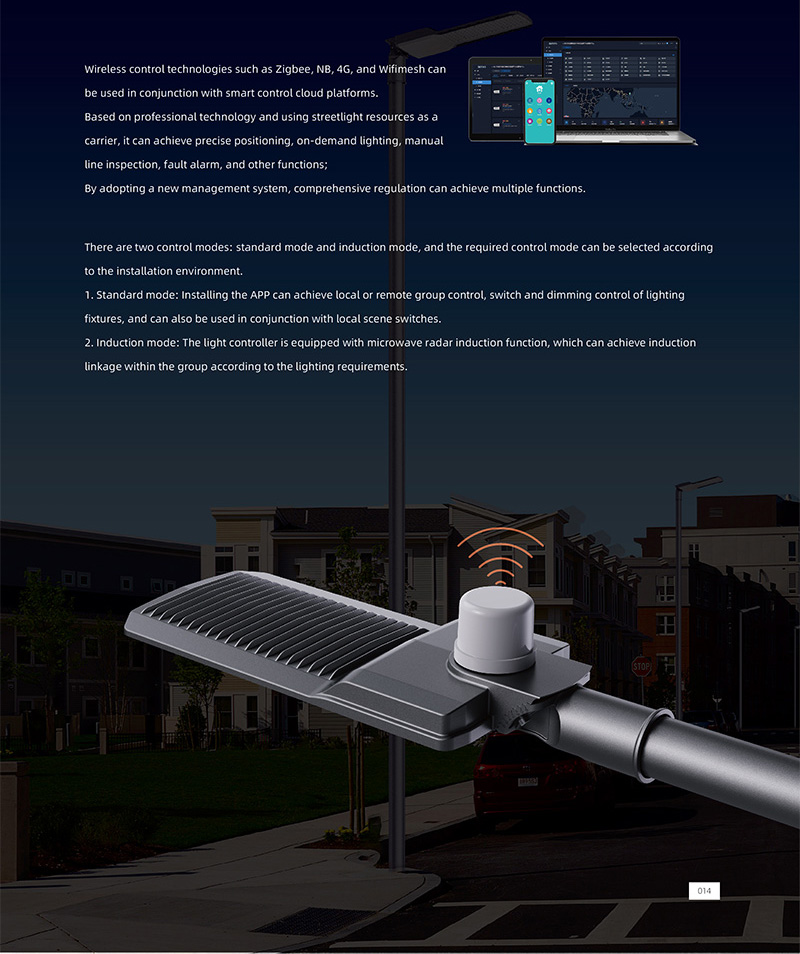

Intelligent Controller Design
