مادة الألومنيوم المصبوبة بالقالب إضاءة LED متكاملة، أجزاء إضاءة LED ذات سطوع لومن عالي مع PCB، اختر العدسة

Model No: EK-LD06
قوة المطابقة: 60 واط/180 واط
تحتوي على الملحقات: غلاف من الألومنيوم، زجاج مقسّى، مسامير التجميع، عمود المصباح،
العنصر: غلاف إضاءة الشوارع LED IP65
الطاقة: 60 واط / 180 واط
جهد الإدخال: تيار متردد 220 - 240 فولت، 50/60 هرتز
اختيار اللون: رمادي غامق، رمادي فاتح، أسود، حسب الطلب إلخ
عمر الخدمة: ≥50000 ساعة

مواصفات المنتج

  • Once powder coating can give 5years guarantee
  • Four size to match differentpower 40w 80w 120w 150w 180w
  • IP66 grade waterproof to protect lighting use seaside
  • IK09 glass grade to use for high standard projects

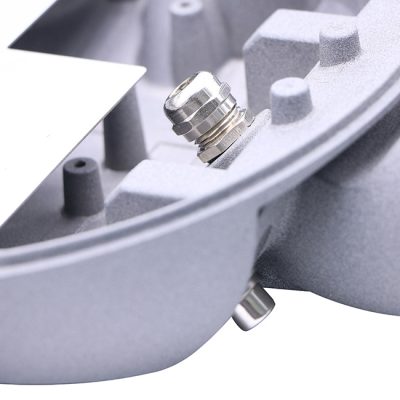

  • إكسسوارات عالية الجودة 304 مسامير من الفولاذ المقاوم للصدأ
  • 72hours salt spray testing, suit use on seaside road way,
  • High heat dissipation conductive with convolution property

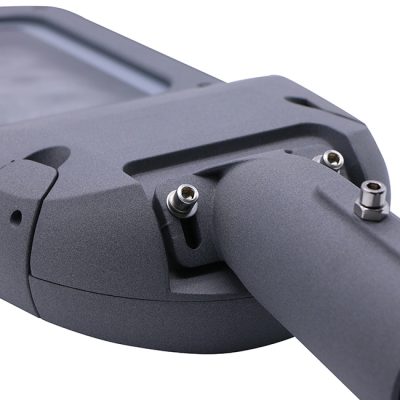

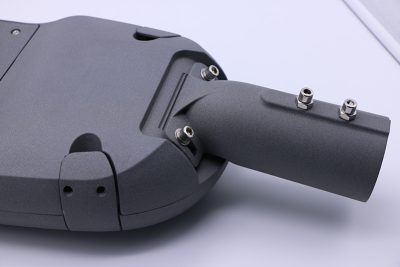

  • Lamp post match : 50/60mm
  • Powder treatment: sandy gray powder painting
  • Surface Color : Dark gray, Light gray & Black and others be customized

مواصفات المنتج

Powder Coating 100w 120w IP66 LED Street Light Housing

EK-LD06

IP66/IP67 , IK09/IK10,

المواد: ADC12 الألومنيوم

لون السكن: رمادي ، أسود ،

  1. - Made of ADC12 aluminum Die-casting,
  2. - IP66 waterproof ADC12 Aluminum case,
  3. - surface treated by Spray-painting to Prevent Corrosion and color Persistence,
  4. - High heat dissipation conductive
  5. - Corrosion resistant polyester powder paint 2.0mil thickness,
  6. - Standard colors : Dark gray, Light gray & Black any special can be customized,

السلسلة الكاملة والمواصفات

رمز النموذجHousing Size (mm)مطابقة القوة  Lamp Post (mm)  Weigh(Kg)مُكَمِّلات
    EK-LD06(XS)535*200*120  20W-40W 502.9Heatsink body,armoured glass,Waterproof Rubber Ring,304 s/s screws,
EK-LD06(S)590*235*12550 واط - 80 واط 50/60  3.6
EK-LD06 (M)690*260*130100W-120W  605.8



EK-LD06 (L)693*310*181150W-180W60                8.0
Legend: Std = IP66 IK09 Testing certificates
مادة الإسكان: ألمنيوم مصبوب + زجاج مصفح
درجة حرارة العمل -40 ℃ ~ 50 ℃ 20٪ ~ 90٪ HR
