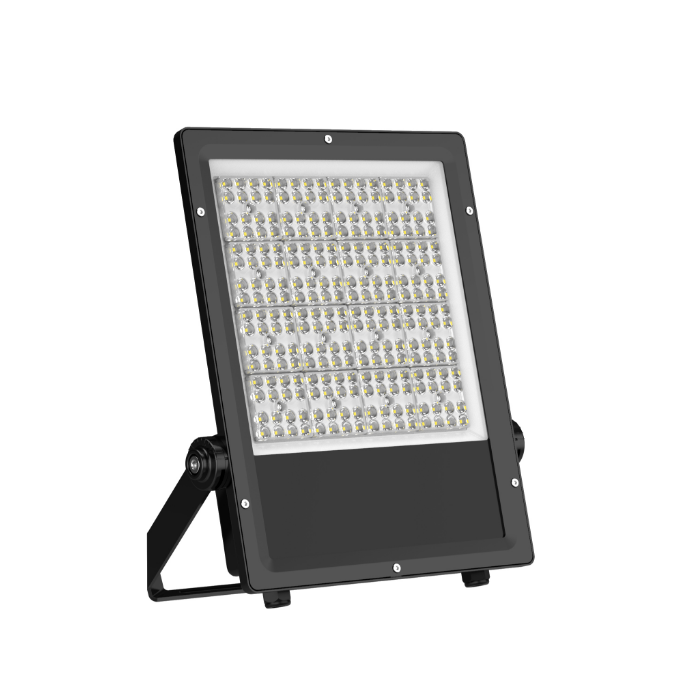

Waterproof Ip66 Aluminum housing flood light,

Industrial Project 50 100 150 200 300 400Watt Led Floodlight

المواصفات والأبعاد

رقم الصنف.  Housing Size(mm)  أقترح السلطةNet. Weight   مُكَمِّلات
EK-FLH04-50w312*207*53 30-60w1.78kgHeat sink Aluminum body, Glass, Bracket,304 screws, PCB, LENS.
EK-FLH04-75w312*258*53 70-80w2.1kg
EK-FLH04-100w312*309*5390-120w2.65kg
EK-FLH04-150w362*309*53150-180w3.38kg
EK-FLH04-200w413*309*53200-240w3.72kg
EK-FLH04-300w437*411*61300-3205.8kg
EK-FLH04-400w515*443*62380-420w8.1kg

Product's Features

Patented private mold, integrated die-cast aluminum shell, fashion and simple appearance.

Large heat dissipation area, good heat dissipation effect, long service life of lamps

High temperature resistant tempered glass, surface paint process, excellent corrosion resistance

High luminous efficiency up to 180lm/w.

Professional anti-glare full cut-off light distribution: luminous Angle 15°/30°/60°/90°/120° T2M/T3M/50*120 polarized light /30*90 polarized light is optional.

 LED Street Light Floodlight die cast housing manufacture, EKI Lighting Industrial provide plentiful types unique, modern design and cost-effective LED Streetlight, LED Floodlight fixtures from 30w to240w 300w,

Mold design die casting service and LED streetlight components.

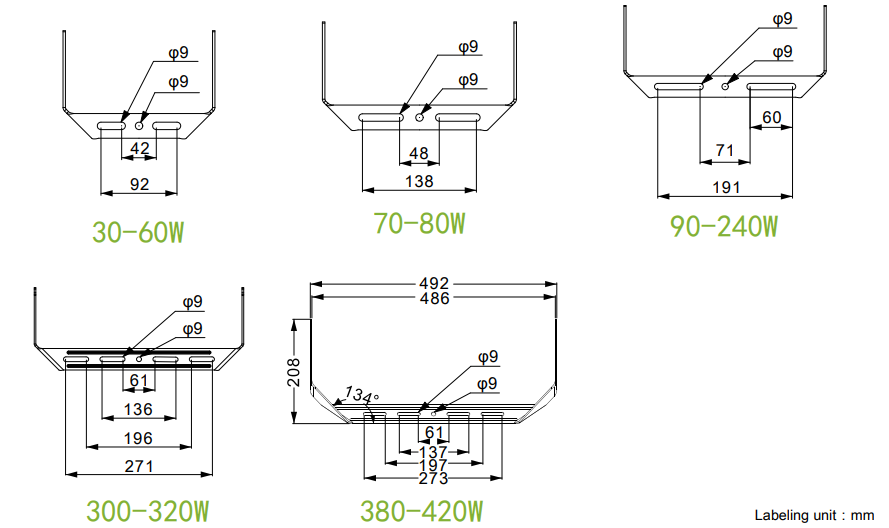

Support hole installation diagram.

طلب

Die casting OEM wholesale waterproof IP66 led garden light, led light, led urban light led street light housing manufactures

Die Cast Factory Workshop Show
